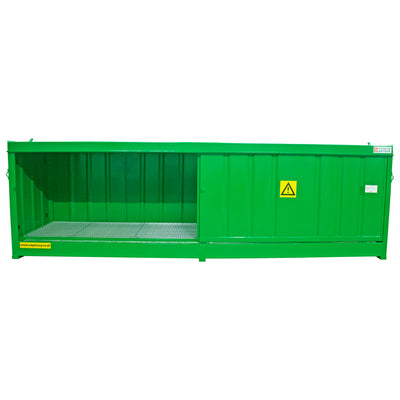

Drum & IBC Store - DPU16-4HS ||To Hold 16 Drums
DPU16-4HS
Backed by our 20 year structural guarantee*

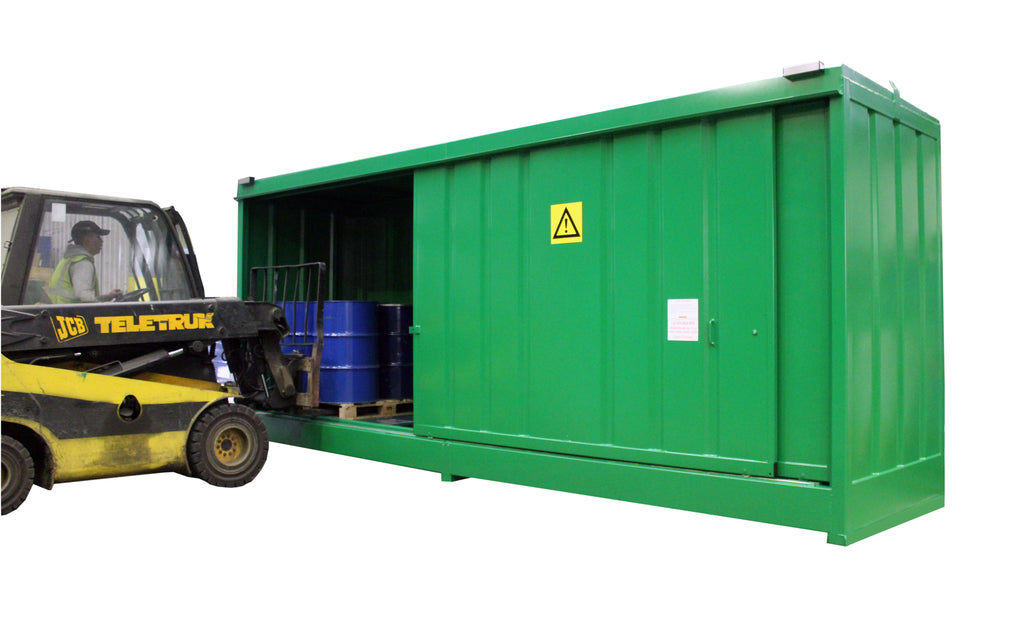

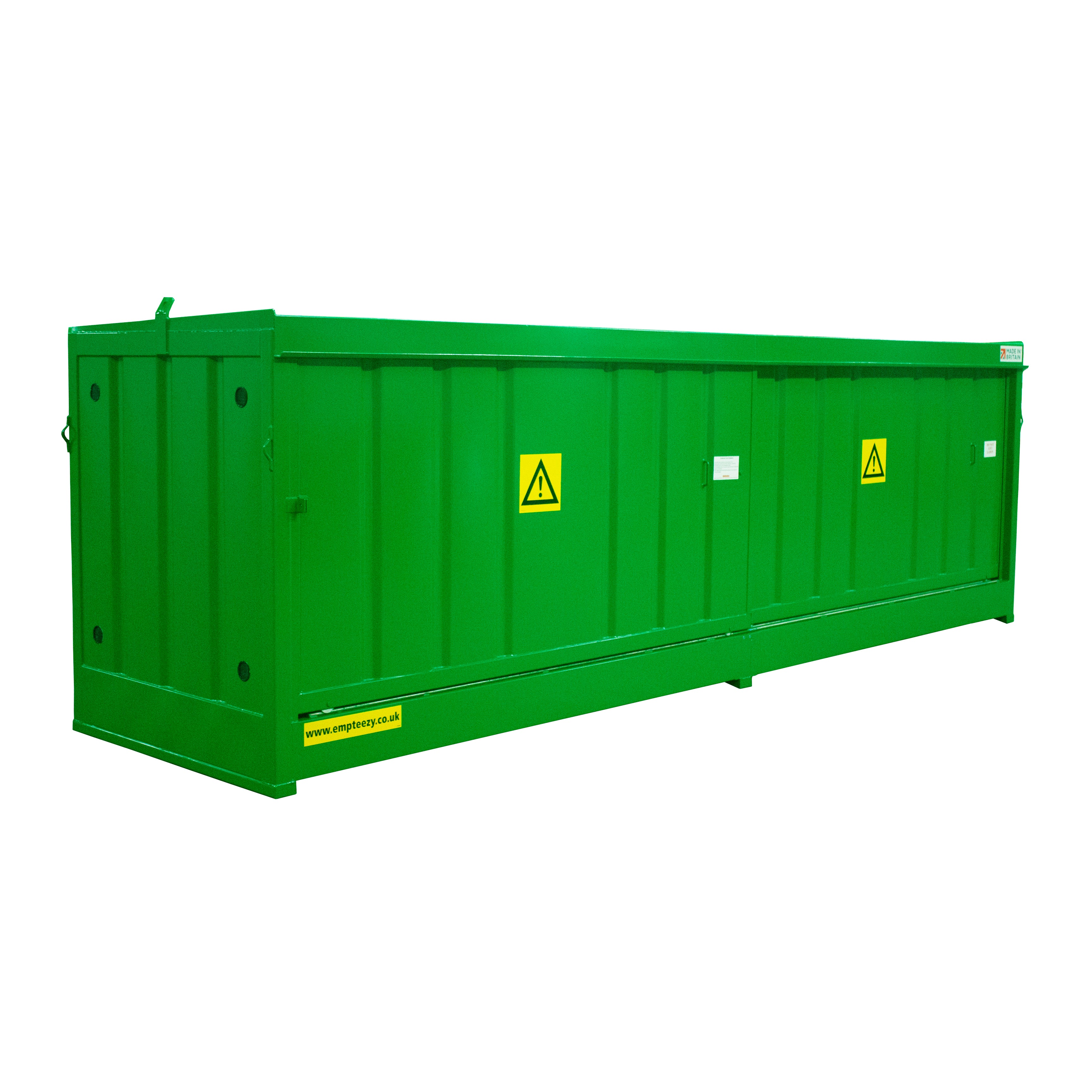

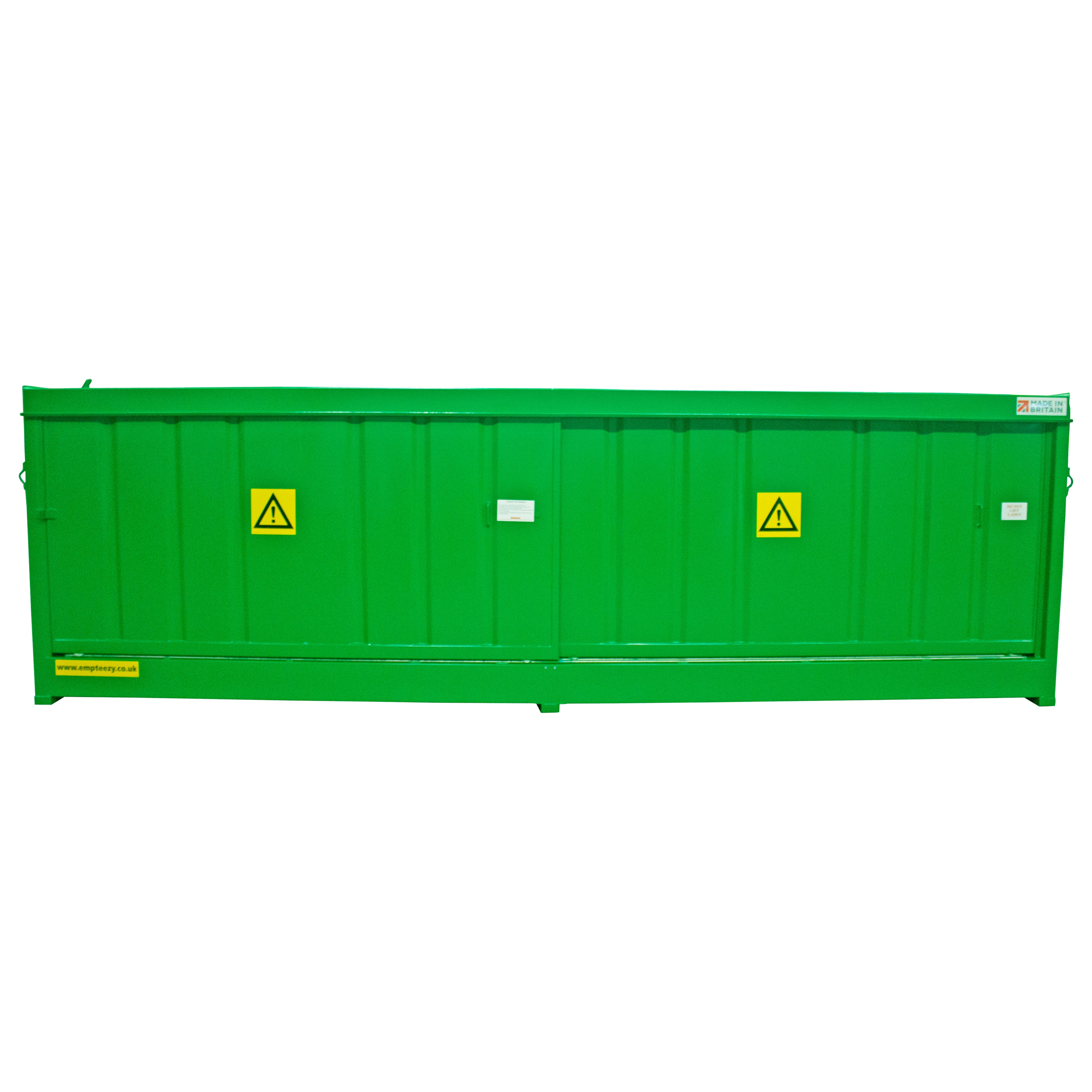

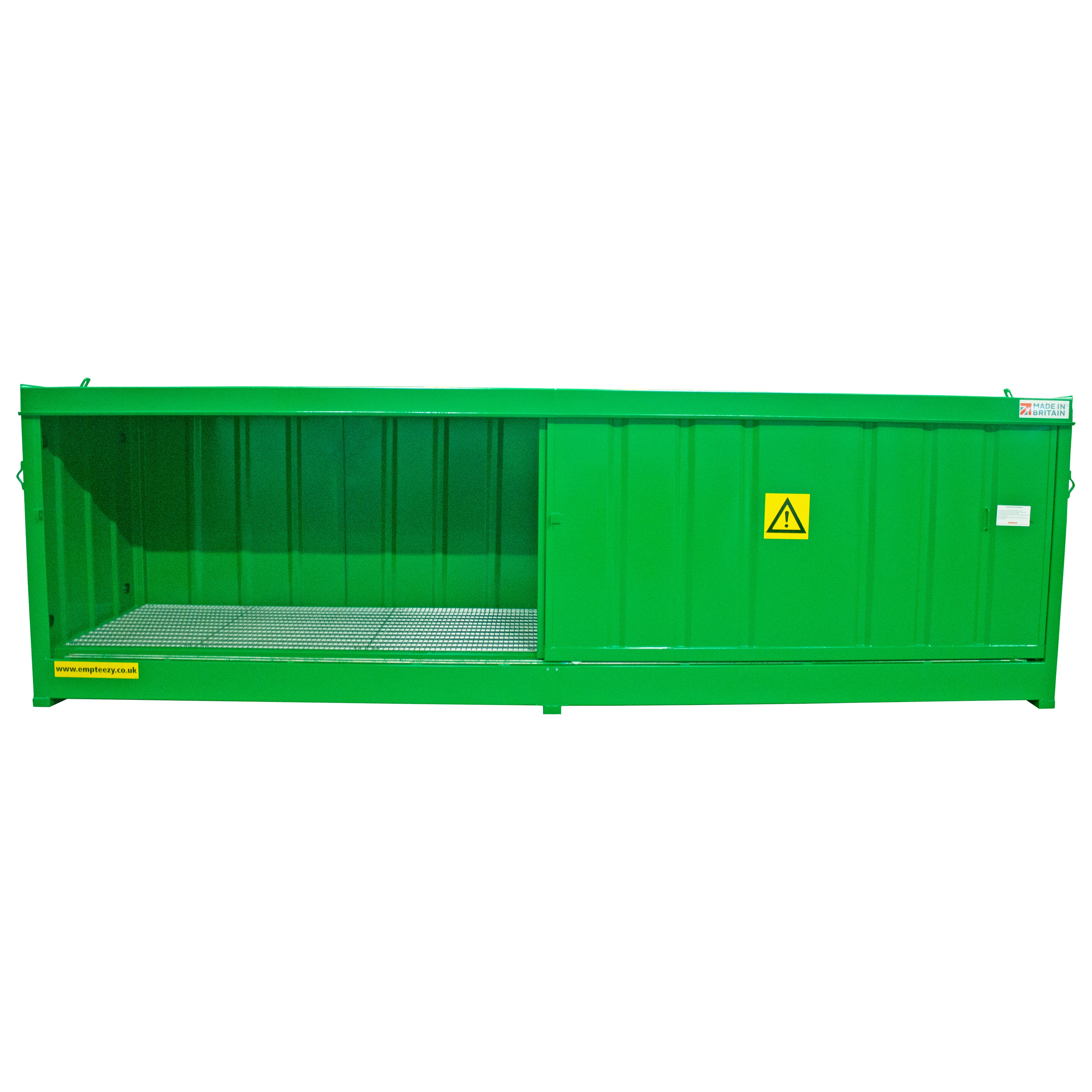

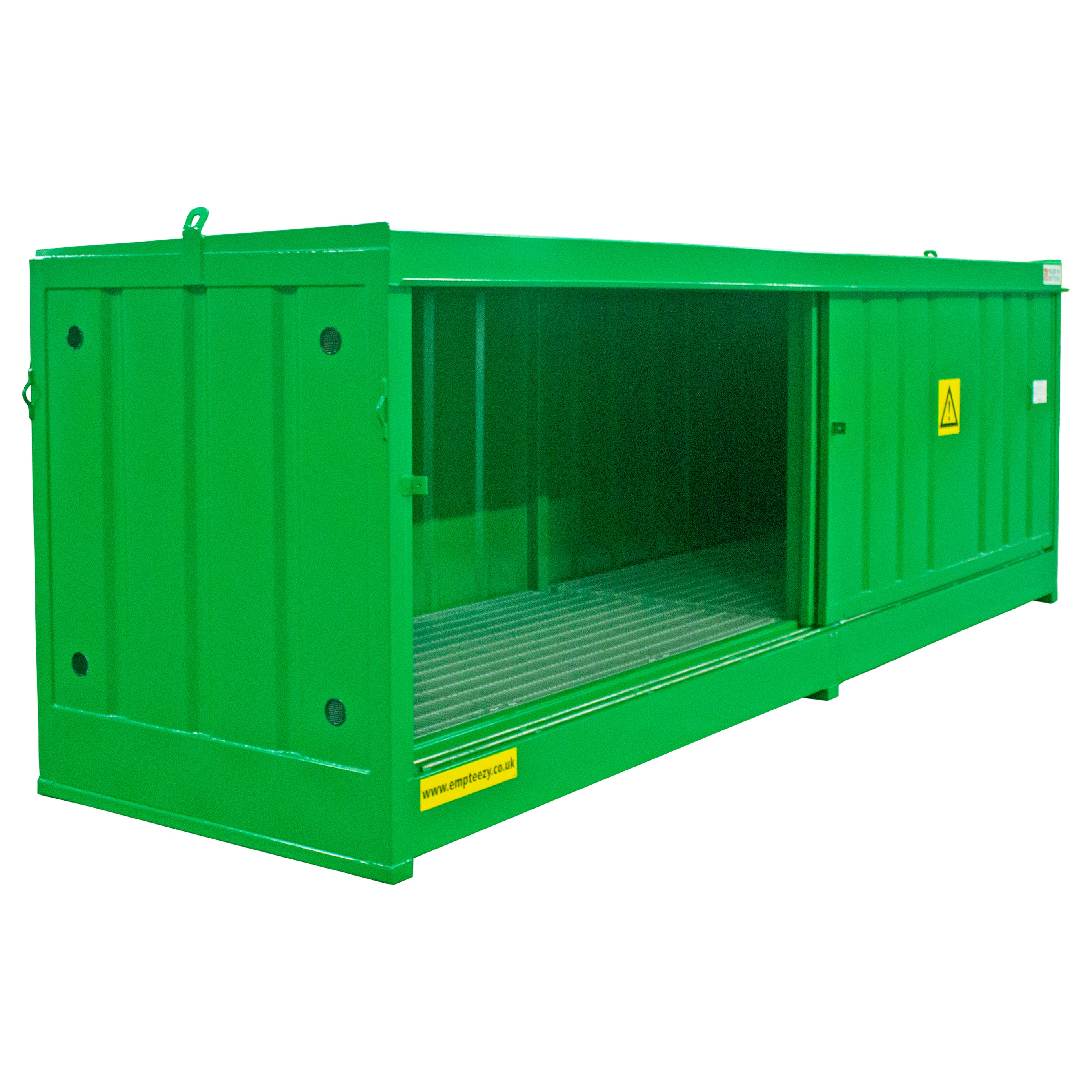

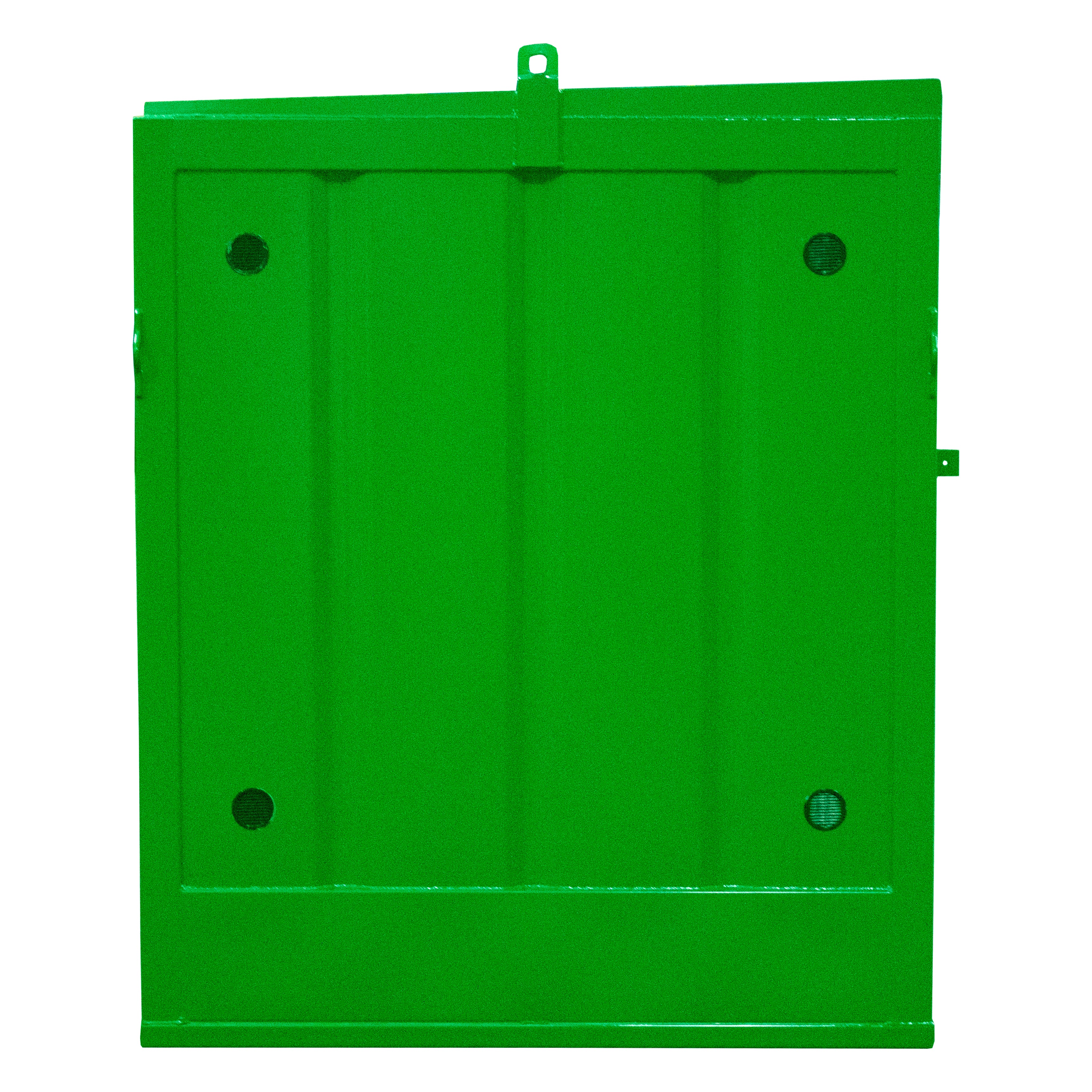

The base of this unit is manufactured from mild steel sheet and uses RHS cross members and pressed ribs for additional strength. All the corner posts and shelves, main rails and cross members are manufactured from rolled hollow section and the back, sides and door panels are pressed from mild steel sheet which is corrugated where required.
The sloping roof is pressed and fitted with suitable bracing, welded around the perimeter and fitted with crane lifting points, and the double steel sliding doors run on easy glide track. Constructed from mild steel and with storage all on one level, the sump is fully seam welded and fitted with galvanised steel pallet channels (3 per pallet space). The sump as you would expect complies fully with all current UK regulations relating to sump capacities and the underside is fitted with plinths to eliminate contact with ground and reduce the risk of corrosion. Prior to painting the unit is fully shot blasted to provide a clean and keyed surface.
This model can hold up to 16 x 205ltr or 4 x 1000ltr IBC and will accommodate standard 1200mm x 1200mm, 1200mm x 1000mm and 1200mm x 800mm pallets.
*Full details available on request
Notes
Chargeable Options:
- Air vents

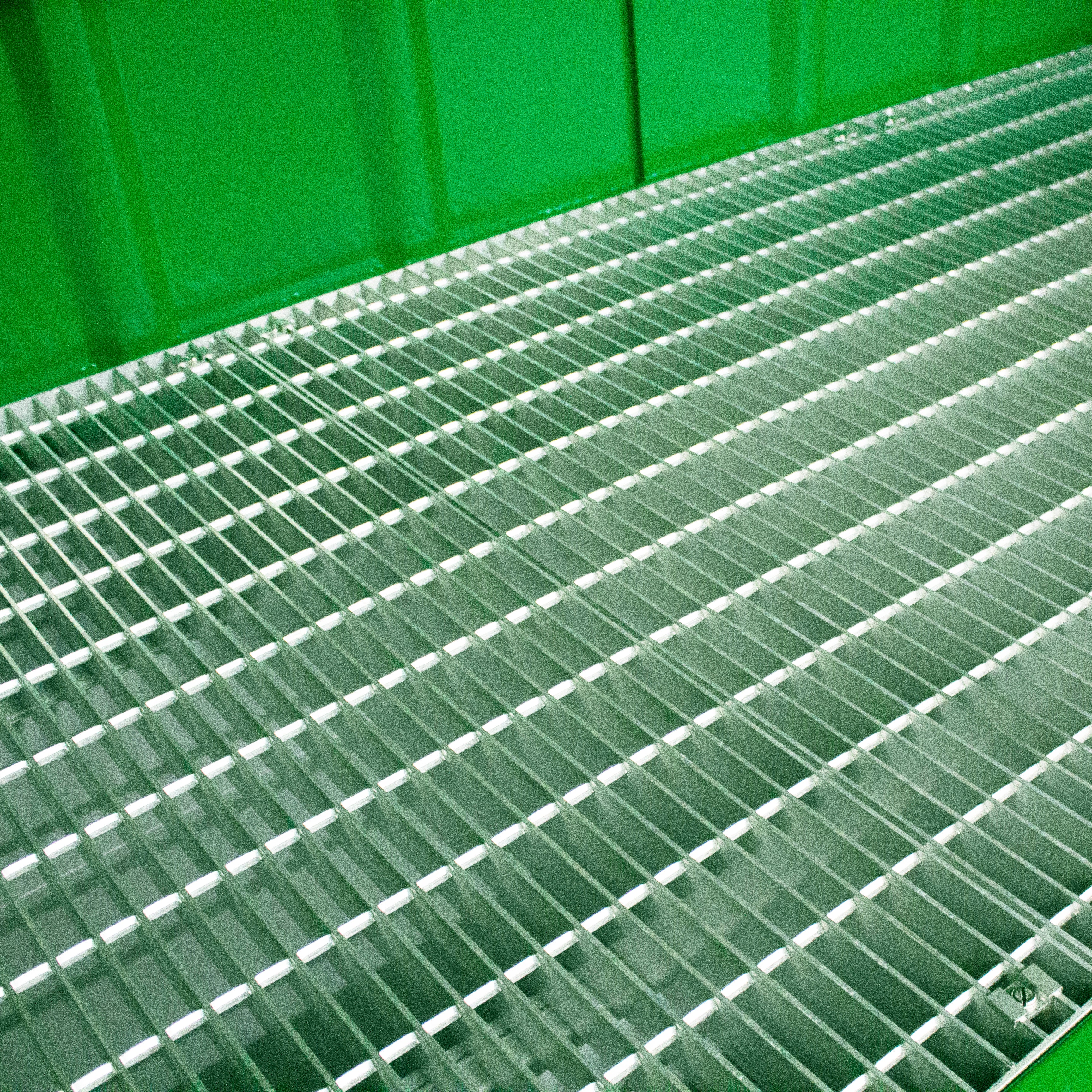

- Galvanised steel grid mesh
Please notify us at the time of ordering if you require any of these options.
This unit will be delivered by an HGV, possibly articulated therefore please ensure that a vehicle of this type can access your premises before ordering and advise us accordingly.
You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading, but we do offer a chargeable HIAB service, which means the unit can be offloaded in any location that the HIAB vehicle can stand adjacent to. The use of this service doesn’t include the levelling of the unit or any responsibility for where you ask for it to be placed on the ground. Any subsequent issues with subsidence or the unit becoming un-level remain your (the customers’) responsibility.
The unit must be positioned on a solid level surface, ideally concrete of circa 150mm in depth and 100mm bigger overall than the unit. The purpose of this is to ensure the unit does not settle unevenly when loaded. Empteezy will not accept responsibility for the correction of units which have been settled on uneven or subsiding ground.
External size: |
5920mm L x 1500mm W x 1806mm H at the highest point of the unit |
Number of containers: | 16 x 205ltr - vertical |
Sump capacity: | 2200ltr |
Standard Colour: | Green RAL 6029 (Other colours available on request) |
Tare weight: | 1200kg |
Type of doors: | 2 sliding |
Type of door lock: | Padlock point (Padlock not supplied) & keyed locks |
Access apertures: | 2760mm W x 1320mm H |
Paint specification: | A high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel, this paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns. |
