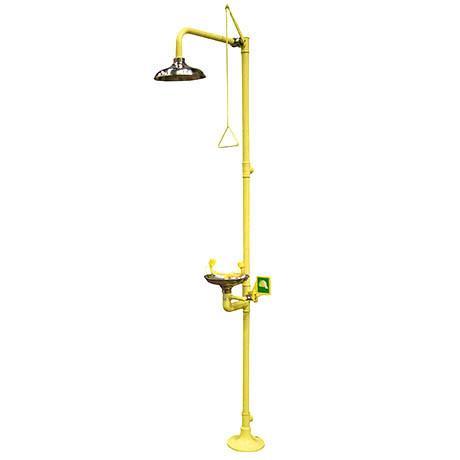

Part Stainless Steel Combination Shower - FSCS-SSHB ||76 x 26 x 22cm
FSCS-SSHB

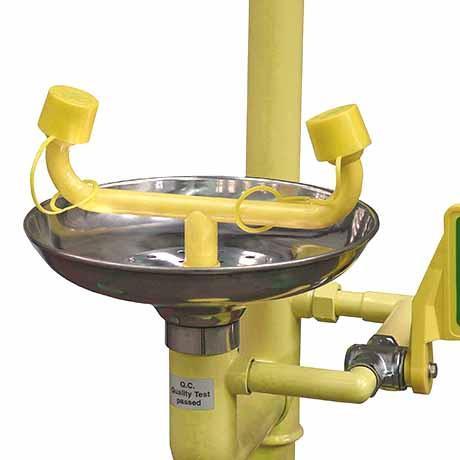

Manufactured using galvanised pipe work which is protected with an anti-corrosive Polyamide 11 high visibility yellow plastic coating to give good resistance to acids, bases, seawater and oils, all fittings are brass and the 250mmØ shower head and eye wash bowl are manufactured from stainless steel. The eye wash has two high flow, aerated low pressure outlets fitted with automatic opening dust covers.
This combination safety shower and eye wash has been designed to meet and exceed the internationally recognised standards: EN15154 parts 1 & 2, DIN12899.3 and ANSI Z358.1.
| Water inlet: | 1¼” BSP |
| Water inlet pressure: | Recommended 2 bar with a maximum of 8 bar - please notify us prior to ordering if your water pressure is below 1.5 bar |
| Shower flow rate: | Regulated at 110lpm |
| Shower operation: | Pull handle |
| Shower valve: | Full bore 1” |
| Eyewash flow rate: | 22lpm |
| Eyewash operation: | Push paddle |
| Eyewash valve: | Full bore ½” |
| Waste: | 1¼” BSP |
| Total weight: | 18kg |
| Dimensions: | 76 x 26 x 22cm |
Specifications
